Drivers
Discover premium Arduino boards, sensors, robotics kits and accessories for your next project
Showing 1 - 5 of 5 products
Drivers

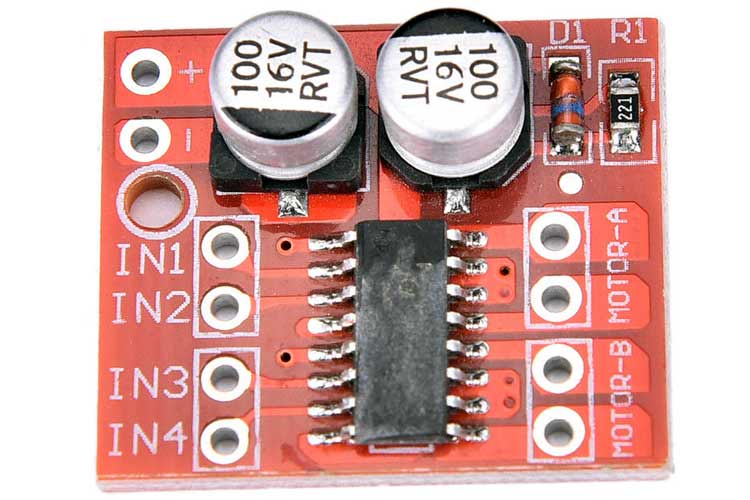

MX1508 Motor Driver
The MX1508 Motor Driver Module is a compact dual-channel motor driver used to control DC motors and small robotic motors. It allows you to control motor speed and direction using microcontrollers like Arduino, ESP32, and Raspberry Pi. 1. Dual channel motor control (2 DC motors) 2. Supports forward and reverse rotation 3. PWM speed control support 4. Low power consumption and compact design 5. Works with 3V–10V motor voltage range (approx.) 6. Compatible with Arduino, ESP32, Raspberry Pi 7. Simple wiring and easy to use

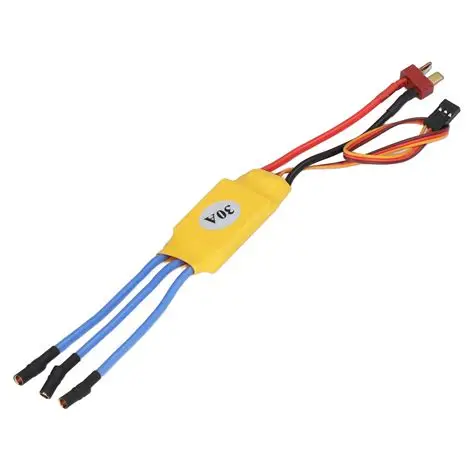

Standard 30A BLDC ESC Electronic Speed Controller
The ESC Brushless Motor Controller provides smooth and efficient control for brushless DC motors. It delivers fast throttle response, protection features, and stable performance — ideal for drones, RC planes, and robotics. Features: 1. Constant Current: 30A (Max 40A<10s). 2. BEC: 5V 3A. 3. Input Voltage: 11.1 ~ 11.7 V. 4. Li-Po battery: 2S ~ 3S. 5. Ni-MH 4-10 CELLS Auto Detect.

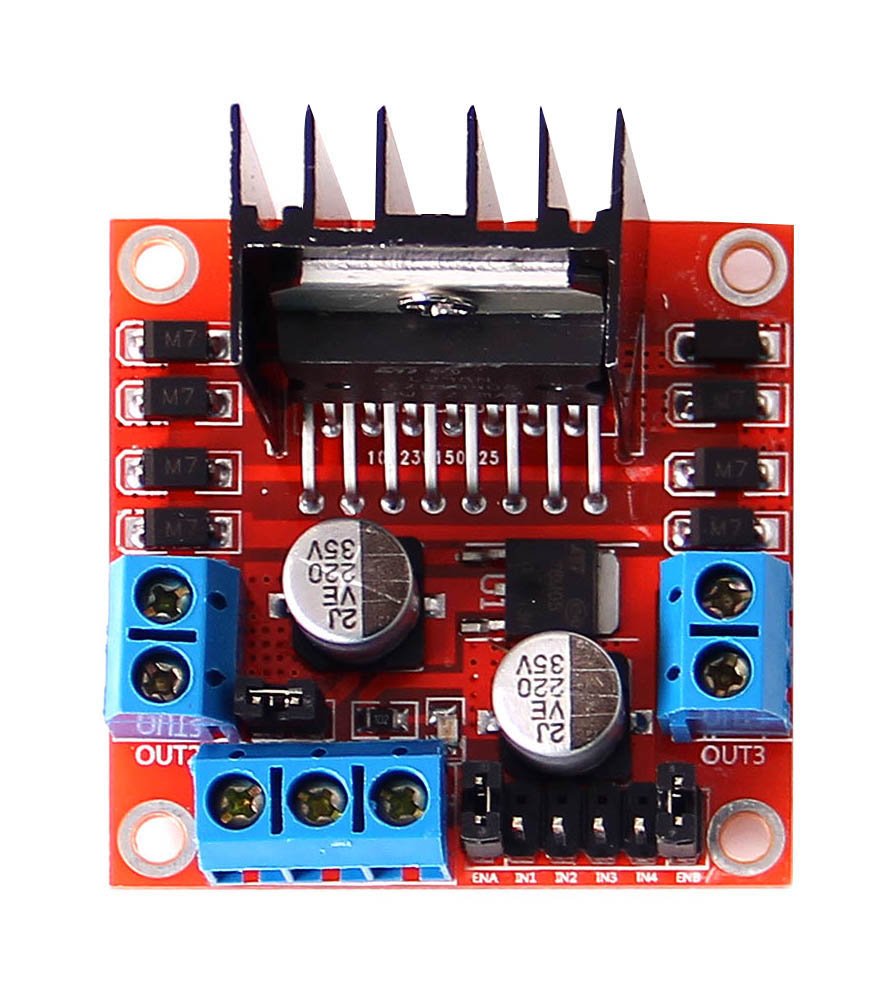

L298N Dual H-Bridge Motor Driver Module - 2A
The L298N Motor Driver Module is a powerful dual H-bridge driver for controlling two DC motors or one stepper motor. It supports bidirectional control and high current loads, making it perfect for robotics and motor control projects. Features: 1. Logical voltage: 5V 2. Drive voltage: 5V-35V 3. Logical current: 0-36mA 4. Drive current: 2A (max. single bridge) 5. Max power: 25W 6. Dimensions: 44 x 44 x 28 (LxWxH)mm 7. Weight: 26 gm

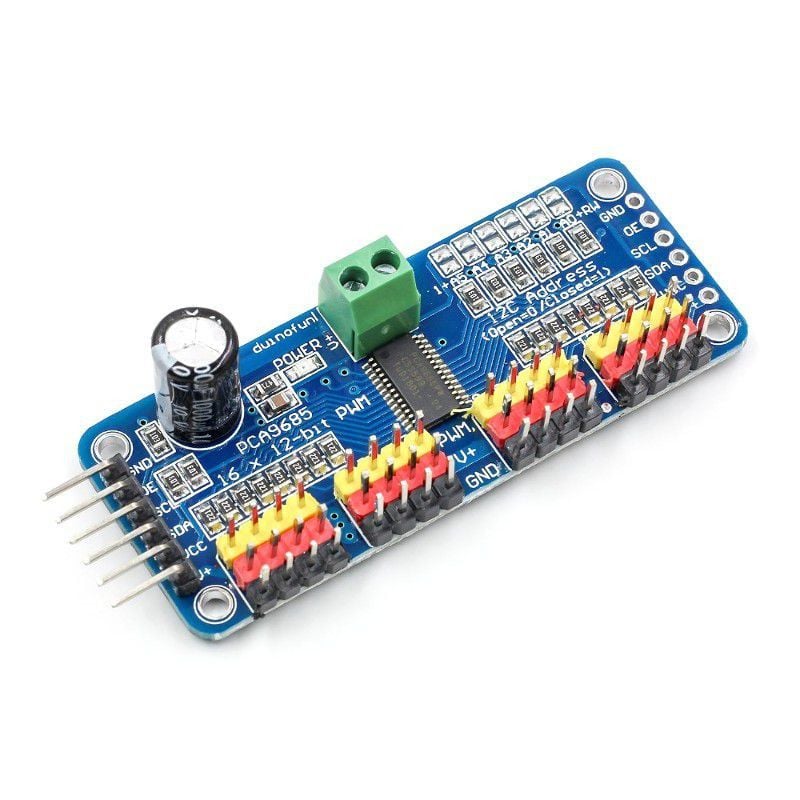

PCA9685 16-Channel Servo Motor Controller
The PCA9685 16-Channel Servo Controller allows you to control up to 16 servos or LEDs with high precision through I²C communication. It delivers 12-bit PWM resolution per channel, ensuring smooth and accurate servo motion for robotics, drones, and automation projects. Features: 1. Adjustable frequency PWM up to about 1.6 KHz 2. 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate 3. Configurable push-pull or an open-drain output 4. The output enable pin to quickly disable all the outputs 5. Terminal block for power input 6. Reverse polarity protection on the terminal block input 7. Green power-good LED

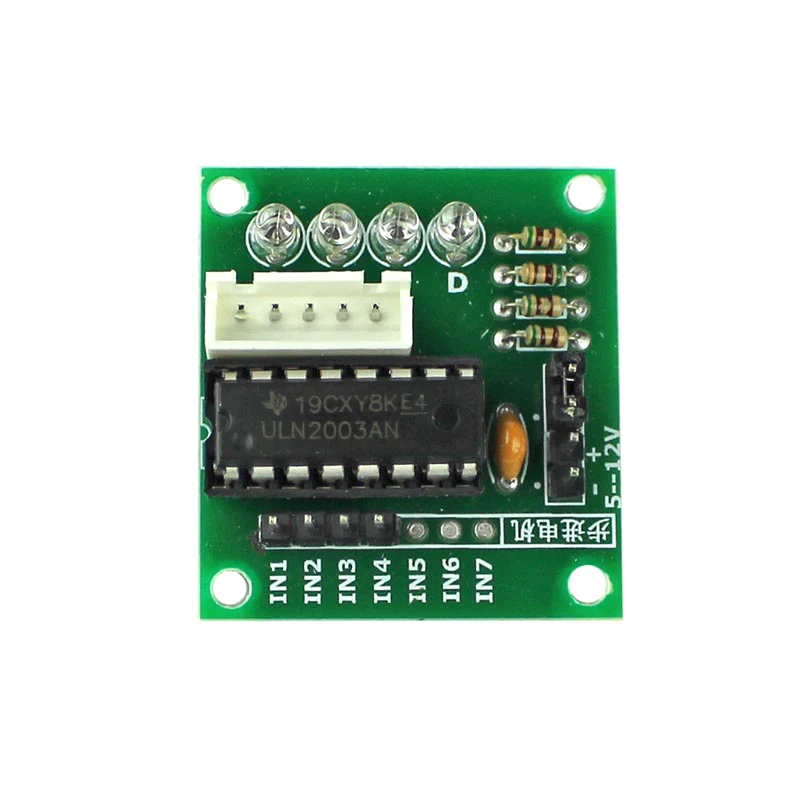

ULN2003 Stepper Motor Driver Module
The ULN2003 Stepper Motor Driver Module is a reliable driver board designed to control unipolar stepper motors with precision and stability. Built with the ULN2003A Darlington transistor array, it is ideal for 28BYJ-48 motors and compatible with Arduino, ESP32, and Raspberry Pi. Features: 1. 5-12V power supply 2. 4-way signal indicator 3. Chip all the pins have Input leads Mounted for easy connection to use 4. XH-5P socket can be connected directly 28BYJ-48 Model stepper motor 5. Dimensions: 32 x 18 x 11mm (LxWxH) 6. Weight: 3 gm
